In today’s competitive magnet wire industry, product excellence begins at the tooling level. Enamelling dies — precision instruments governing every pass of enamel onto copper and aluminium conductors — are the decisive factor in insulation quality, winding performance, and long-term conductor reliability.

THE CRITICAL ROLE
In the wire enamelling process, the conductor passes through multiple coating and curing stages, with the die precisely controlling the amount of enamel applied at every pass. This critical function ensures uniform insulation thickness, consistent surface quality, and reliable electrical performance throughout the finished conductor.

Far more than a simple production component, the enamelling die is a key quality-control element within the process. Its bore geometry, surface finish, and dimensional accuracy directly influence coating consistency, process stability, and overall magnet wire quality. Even with advanced enamels and modern production lines, the final performance of the wire depends significantly on the precision of the enamel die.

As demand intensifies for energy-efficient equipment and higher-voltage EV systems, manufacturers are under increasing pressure to deliver enamelled conductors that meet the most exacting dielectric and thermal specifications making die quality more consequential than ever.

“More than a tooling component, enamelling dies are a critical quality-control element that directly influences conductor performance, manufacturing productivity, and process reliability.”

Watch: Top Cable Companies in India

THE COATING PROCESS
Each conductor pass follows a precise sequence — from initial feed through enamel application, metering, curing, and multi-pass insulation build-up. The die governs the critical metering stage at every pass.

MATERIAL EXCELLENCE

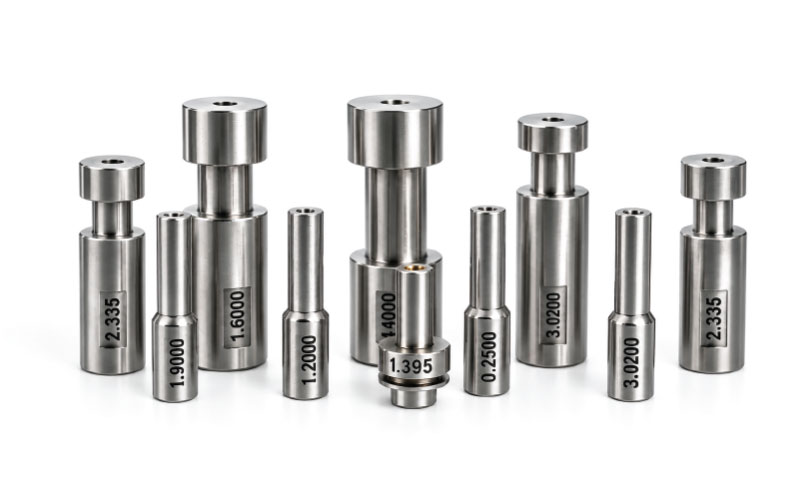

Solid enamelling dies are manufactured from three premium materials, each selected to match the demands of specific production and wire specifications:

PCD Enamel Dies (PCD): PCD Enamel Dies offer closer tolerances, superior wear resistance, and excellent dimensional stability due to their mirror-polished surface, as well as significantly longer service life compared to conventional TC Enamel Dies.
They are highly recommended for sizes below 1.500 mm, and their exceptional durability makes them ideal for high-speed enamelling machines, ensuring consistent enamel build, reduced downtime, and reliable wire quality. It is also suitable for sizes above 1.500 mm.
TC Insert Enamel Dies (TC): TC Insert Enamel Dies are an economical solution for enamelling applications and are widely used for wire sizes above 0.200 mm. They provide reliable performance and cost-effective operation for standard production requirements.
Natural Diamond (ND): Renowned for its exceptional hardness and ability to deliver a superior mirror-like surface finish, ideal for ultra-fine conductors and premium-quality wire production.

DEFECT PREVENTION
Optimised die geometry systematically eliminates the root causes of coating failure. Each defect type is addressed by a specific aspect of die design and surface engineering:

Pinholes & Voids – Mirror-polished bore enables uninterrupted enamel flow.
Surface Blistering – Optimised approach angle and precise bore geometry.
Uneven Insulation Build – Exact concentricity and dimensional stability under heat.
Surface Irregularities – Smooth, continuous enamel metering across full circumference.

CONFIGURATION & CUSTOMISATION
To accommodate diverse manufacturing, enamelling dies are available for both vertical and horizontal enamelling machines. Body configurations include steel, aluminium, brass, and custom designs. For specialised applications, die profiles and body dimensions can be fully tailored to specific machine parameters, ensuring optimum process performance and coating consistency at every production speed.

Also Read: ZUMBACH Introduces New AI-Driven SIMAC® Surface Testing System

INDUSTRIES & APPLICATIONS SERVED
Magnet wire & motor windings, Power transformers, Renewable energy, Aerospace & defence, Telecommunications, Industrial machinery, Consumer electronics, Generators & Compressors, etc. An enamelling die is one of the smallest components on the production line, yet its impact is among the most significant. The manufacturer who controls die quality controls coating quality, and the manufacturer who controls coating quality controls everything downstream: winding performance, insulation integrity, product reliability, and customer trust.
